    Home > Products >PVC Cling Film Production Line >PVC cling wrap film production line

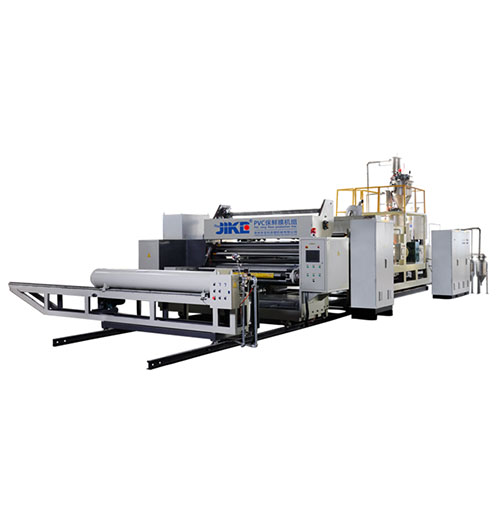

    PVC cling wrap film production line
    • Name:
      PVC cling wrap film production line
    • Model: 2003
    •   Contact Us
      • https://www.jishengplastic.com/uploadfiles/107.151.154.88/webid115/source/201511/144739957018.jpg
    Quick Detail:


    Main technical parameters

    Model 2300
    Screw Diameter (mm)115
    L/D Ratio of Screw28:1
    Width of Die (mm)2300
    Width of Finished Film (mm)1800 (300×6 rolls)
    Thickness of Finished Film (mm)0.009-0.011
    Max.Extrusion Capacity (kg/h)300
    Design Line Speed (m/min)220
    Total Installed Power (kw)300
    Overall Dimensions(L×W×H) (m)15×5×4.5
    Weight (T)35


    The above technical data will be changed without noticed.
